Grouting packers
Grouting packers are designed for low-pressure and high-pressure groutings of special materials into the building constructions. Our company offers wide range of grouting packers devided into several categories by construction and material. We standardly produce grouting packers into boreholes of diameter 6-20 mm. For particular dimensions of packers, see table of„Standardly offered variations of packers“. It is possible to produce packer of various measures according to the customer´s request.
![packers packers](/storage/cms/category/editor_images/00033/e2029a85fc536d293560399e94f69da5.jpg)
Assortment division of standard injection packers according to the construction and material:
OPK - steel packers kombi
OPD - steel packers double-casing
APD - aluminum packers double-casing
SPK - alloy packers kombi
INJECTOR - plastic injectors lamellar or conical

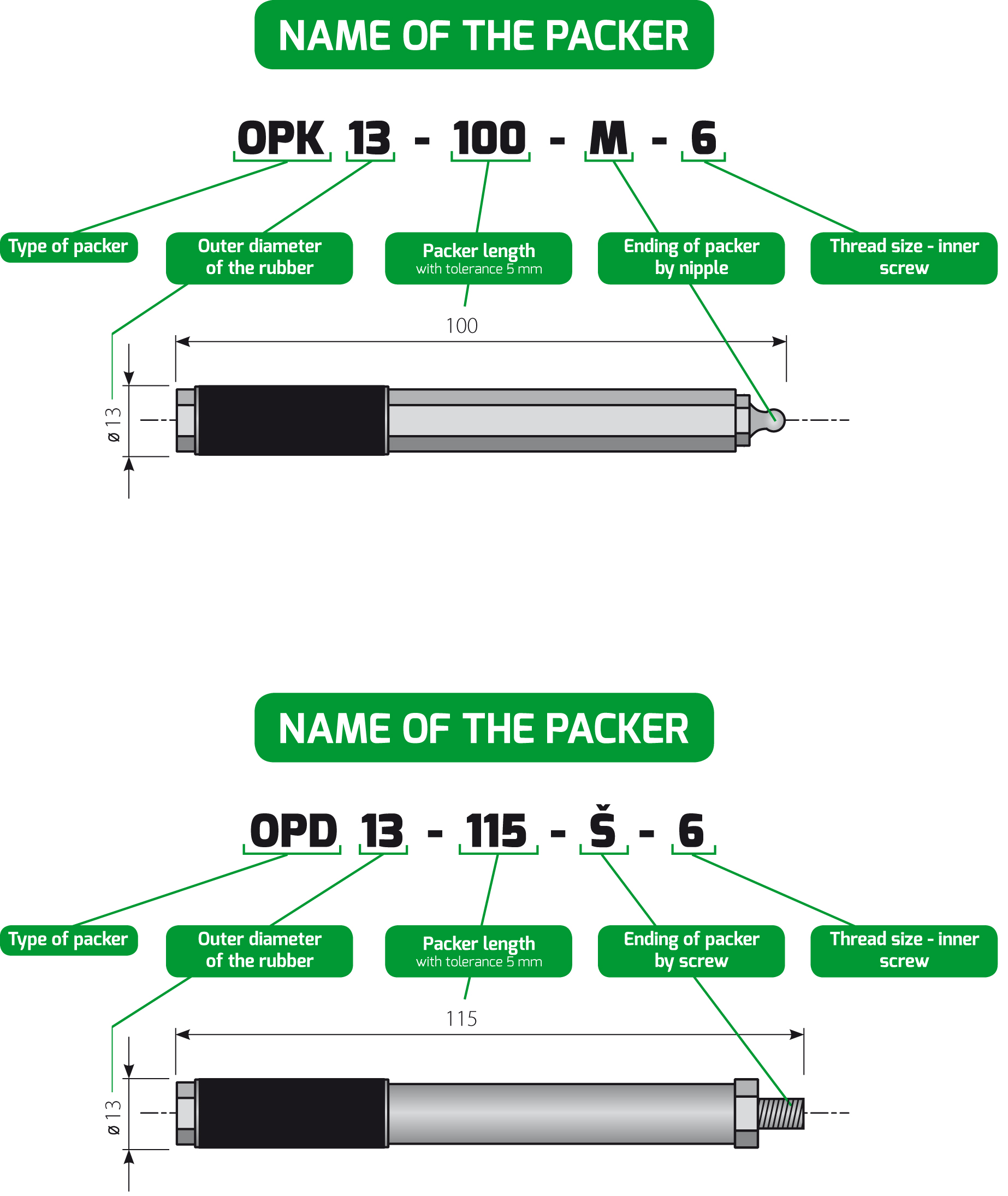

Each injection packer has its own specific name, which consists of designation of the packer according to the type of construction and material (OPK, OPD,…), diameter of sealing rubber, length of packer, end type (screw, nipple) and thread of the screw:
![groutingpackers groutingpackers](/storage/cms/category/editor_images/00033/2d78fc45e2988991854eaa14bc7a1b95.jpg)
Behind this specific name, in brackets, there can be stated letter specification of variants of individual packers. See the Table of „Standardly offered variations of packers“.
Types of assortment Grouting packers
- Steel packers kombi OPK
- Steel packers with double-casing OPD
- Aluminum packers with double-casing APD
- Alloy packers kombi SPK
- Plastic strike LAMELLAR INJECTORS
- Plastic strike CONICAL INJECTORS
- Special types of packers – ONE-DAY (DV)
- Special types of packers – LOW PRESSURE (VK)
- Special type of packers – GEL packers
- Special type of packers – FOR DEEP GROUTING
- Special type of packers – BLIND packers
- Special type of packers – STICK packers
- Special type of packers – OTHER
- Grouting packers - ACCESSORIES
