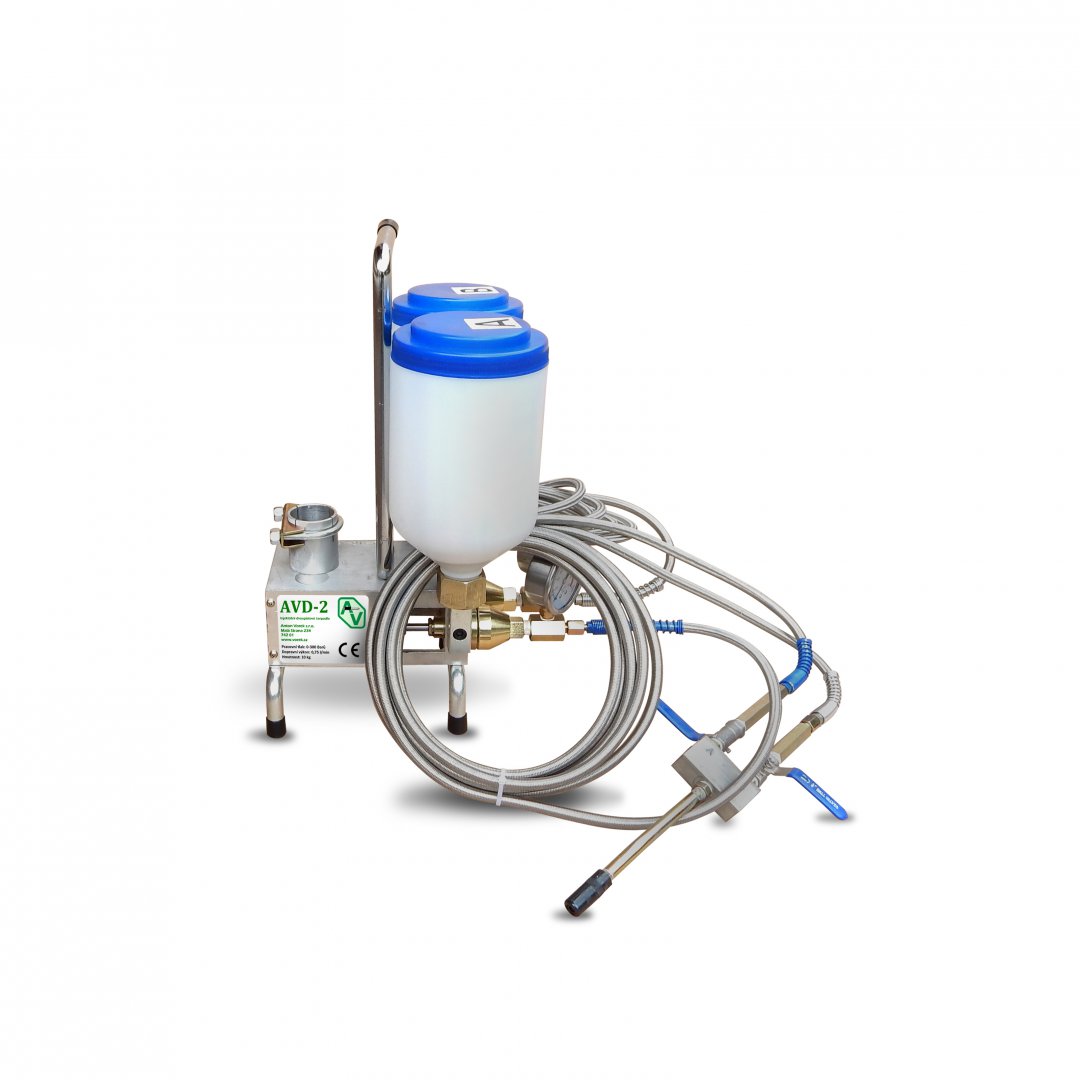

Grouting double-piston pump AVD-2

Grouting pump AVD -2 is designed for grouting with two-component polyurethane resins with mixing rate 1:1 by volume into the building constructions for the purpose of sealing and strenghtening of the building constructions and soils. After decoupling of hoses from the mixer, the pump can be used even for sealing and water-proofing grouting with one-component polyurethanes (duplex pump).

Technical data:

• Weight:                                 14 kg
• Mixing rate:                         1:1 (by volume)
• Max. working pressure:     250 bars
• Delivery capacity:               up to 1 l/min acc.to material viscosity
• Pump´s drive:                      El. drill adjusted for connection onto the pump (not included in pump delivery)

Pump accessories (included  in the pump delivery)

• Catch driver for the drill
• High pressure hose M-M 5,0 m
• Ending with ball valves and mixer
• Coupler 4-jaws
• Spare sealing
• Spare filter (sieve)

CLEANING OF THE PUMP:

• Solvant 2000, diluent S6001
